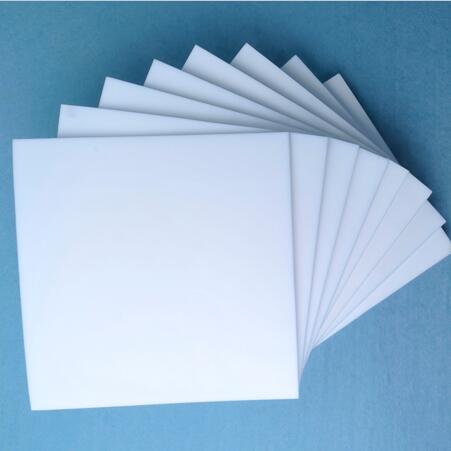

PTFE Sheet

1.Virgin and recycled materials available
2.-Skived Sheet
Min Thickness=0.1mm, Max Thickness=0.5mm, Max Width= 1.2m
Min Thickness=0.5mm, Max Thickness=6mm, Max Width= 2.7m
-Molded Sheet
Min Thickness=2mm, Max Thickness=100mm, Min Dimension=300x300mm, Max Dimension= 2000x2000mm
3.Size can be made based on customers' detailed requirement.


Main Features:
1.Heat resistance property---It is able to wok stably between -180°C to +260°C.
2.Excellent non-sticky property---It easier to remove those resin, dopes, oil and other sticky things.
3.Good mechanical property with no distortion and low friction coefficient.
4.Excellent insulation property.


The below materials can be filled in our PTFE Tube
1.Glass Fiber:Increases compressive strength, rigidity and wear. Reduces creep and cold flow Minimal effect on chemical and electrical properties
2.Carbon:Increases compressive strength, hardness, wear, and load properties. Good chemical resistance Various types and amounts of carbon can be added to alter conductivity
3.Graphite:Reduces coefficient of friction Reduces initial wear Increases strength
4.Molybdenum Disulfide:Increases hardness, stiffness, and wear Minimal effect on chemical and electrical properties
5.Bronze:Increases hardness and wear resistance Increases dimensional stability and compressive strength. Not suitable for corrosive or electrical applications
