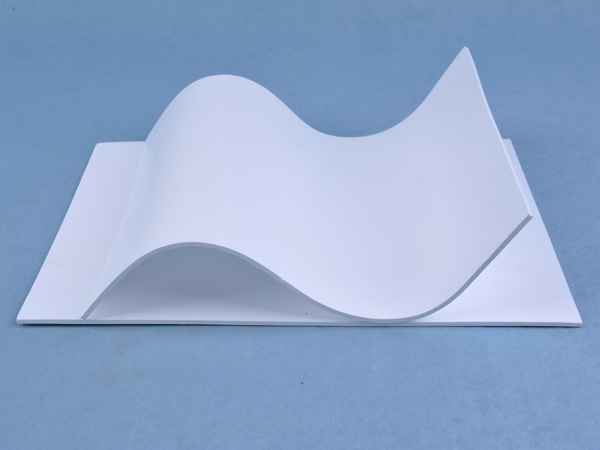

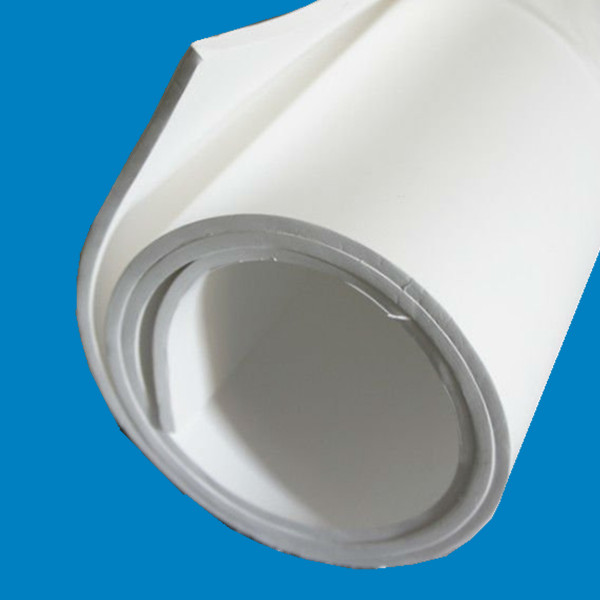

Expanded PTFE Sheet
- Product description: (ePTFE) Expanded PTFE Sheet
Product introduction
Multidirectionally expanded PTFE sheet made from 100% PTFE.
This special manufacturing process results in almost equal tensile strength in in all directions.
Also this material is easier to compress and minimizes creep and cold flow.
Application:
● Aerospace
● Petrochemical
● General Chemical
● Pulp and Pape
● Food and Beverage
● Power Generation
Advantages:
◆ Good chemical resistance
◆ Resistance to cold flow
◆ Excellent mechanical strength
◆ Reliable sealing
◆ Flexible & easy cutting
◆ Clean and non-toxic
Physical Properties:
| Temperature °C | -260~260 |
| Operation Pressure PSI | Vacuum to: 3000 |
| Color | White |
| pH | 0-14* |
| Density | 0.75-0.85 g/cm3 |
| Sealability-ASTM F37B ml/hr | 0.17 |
| Compression- ASTM F 36 M % | 63.4 |
| Recovery - ASTM F36 % | 9.1 |
| Stress Relaxation- ASTM F38 % | 37.1 |
| Complies to FDA21 CFR177.1550 | |
Dimension:
|
Model |
Thickness |
Tolerance |
Size |
Tolerance |
|
CI-F05-S |
0.5mm |
±0.1mm |
1500x1500mm |
±10mm |
|
CI-F10-S |
1.0mm |
±0.15mm |
||
|
CI-F15-S |
1.5mm |
±0.2mm |
||
|
CI-F20-S |
2.0mm |
±0.2mm |
||
|
CI-F30-S |
3.0mm |
±0.3mm |
||
|
CI-F40-S |
4.0mm |
±0.3mm |
||
|
CI-F50-S |
5.0mm |
±0.3mm |
||
|
TX-F60-S |
6.0mm |
±0.3mm |
Also we can supply the 3000 x 1500mm and 4500 x 1500mm, Thickness:0.5mm-7mm
