> PTFE / Plastics Engineering

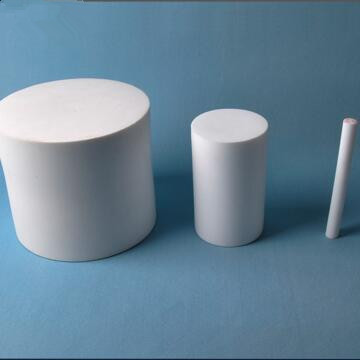

PTFE Molded Rod
- Product description: PTFE Molded Rod
Product introduction
General 3mm-200mm diameter ,standard length 1 meter, length can be customized (m).
Usage: processing spacer, seal parts, lining shelves, scrapers, guides, and various frequencies used for electrical insulation, bridge bearing sliders.
Features:
1.Strength (high strength-to-weight ratio)
2.Chemical inertness
3.Biocompatibility
4.High thermal resistance
5.High chemical resistance in harsh environments
6.Low flammability
7.Low coefficient of friction
8.Low dielectric constant
9.Low water adsorption
Usage: processing spacer, seal parts, lining shelves, scrapers, guides, and various frequencies used for electrical insulation, bridge bearing sliders.
Features:
1.Strength (high strength-to-weight ratio)
2.Chemical inertness
3.Biocompatibility
4.High thermal resistance
5.High chemical resistance in harsh environments
6.Low flammability
7.Low coefficient of friction
8.Low dielectric constant
9.Low water adsorption
10.Good weathering properties
Test parameters
|
Technical parameters: |
The industry standard: |
Test results: |
|
Density |
|
2.1—2.3g/m³ |
|
Compression performance |
ASTM F36-99 |
10%-15% |
|
Elastic properties |
ASTM F36-99 |
>50% |
|
Tensile strength properties |
|
18Mpa |
|
Temperature |
|
-200-260 |
|
Pressure |
|
4.0Mpa |
|
Stress relaxation properties |
ASTM F38-00 |
70 |
|
Elongation at |
ASTM D1780-06 |
≥348% |
